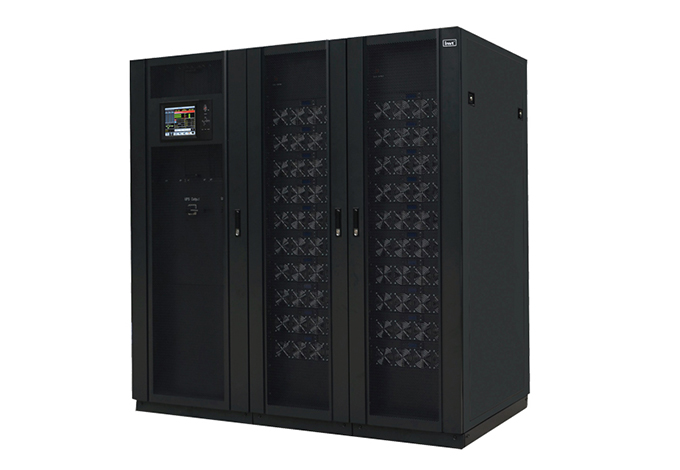

RM Series Online UPS
25-600kVA (380V/400V/415V)
Description：
Each power module has an independent LCD, which gives users a direct overview of status data and alarms in real-time.
Friendly Interface
Provide graphical and text-based information on alarms, status data, and instructions so that users can have more friendly and safer operations.
Isolated Air Flow
The dedicated and redundant hot-swappable power modules take the most unique structure design. In this design, the PCB boards and heat sinkers are in two completely different layers, which allows the UPS to run in dusty environments, significantly improving its stability and environmental adaptability.
Cooling air flows in the lower layer, keeping the upper PCB free of dust
One airflow channel ensures fan redundancy, even if one fan fails, the power module can run normally
Unique Design for High Reliability
Instead of discrete IGBT and SCR components, RM series UPS uses modular IGBT and SCR in the Rectifier and Inverter, bringing in extremely high reliability.
All components in one module, less fault points, higher reliability
All components are integrated as one modular design, smaller disparity
Less space needed, UPS with compact design and higher power design
Integrated inner thermal sensors display IGBT inner temperature directly
High Density, Modular, Scalable
High power density, footprint for 300kVA is 0.66m², power density 409kW/m², saving valuable data center space
Scalable from 30kVA to 900kVA, max 30 power modules in parallel
Inherently N+X redundant
Hot-swappable power module and bypass & monitoring module
Additional charging module, extra charging current 50A×N for long time back up application
Comprehensive Monitoring Management
In each power module, information on critical components is monitored and displayed in real-time, giving customers a view of the inner status of the system and providing reminder information for maintenance.
Maintenance reminder, running time of capacitors and fans displayed and recorded
Comprehensive temperature monitoring for thermal abnormal detection
Intelligent battery charger for long battery life
Critical Waveform Recording
UPS can record and save the data of the main parameters automatically when faults happen for further analysis.
Can record data information and present as a waveform for further analysis
Can easily spot the causes of the failures, and avoid future similar faults
Smart Sleep
Smart Sleep function can intelligently make some power modules go to sleep when the load is relatively low, improving the efficiency of the remaining power modules and saving customers on power and cooling costs.
Improving efficiency, reducing power and cooling costs Easy setting with just two steps. Customers can select sleep mode and rotation period
Power modules working in rotation, prolong the lifetime
